Short Can reduction, Manual input.

This example shows two options::

• Defining Can data
• Defining location of the new nodes.

The actual commands are:

JNTOPTION CanLength ...

JNTOPTION CanDiam ...

JNTOPTION CanThick ...

SWITCHES Joint EyeLift 1.0 ! Specify that nodes are located on chord surface.

 The input is specified in the following files:

=> Usfos Control File
=> Structural Model File

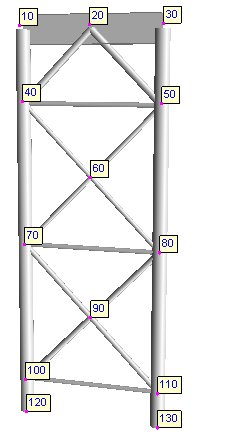

Figure 1 :  Analysis Model .

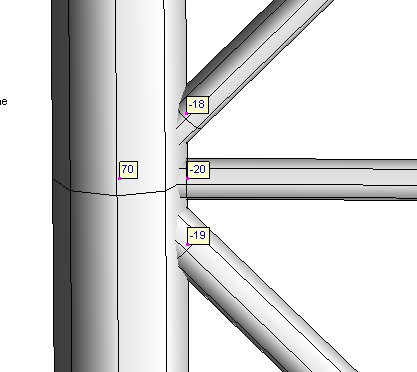

Figure 2 :  New nodes is located on chord surface.
